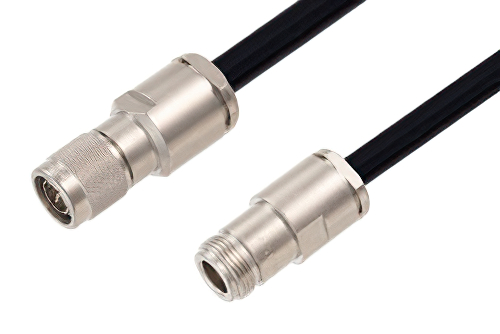

75 Ohm TNC Male to 75 Ohm N Female Cable Using 75 Ohm RG6 Coax

製品ID: PE3W09994

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	TNC
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	75 Ohm
Connector Series 2	N
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	75 Ohm
RF Cable Part Number	RG6A/U
RF Cable Type	RG6
RF Cable Impedance	75 Ohm

Description

Click on the below images to access KitBOM product pages:


PE44161	RG6A/U	PE4514	KitBOM Datasheet

75 Ohm TNC Male to 75 Ohm N Female Cable Using 75 Ohm RG6 Coax

PE3W09994 is a TNC male to N female cable using RG6 coax. This Pasternack TNC male to N female cable assembly uses a 75 Ohm TNC for connector 1 and a 75 Ohm N for connector 2.

Our male TNC to female N cable assembly uses a flexible cable type that is 75 Ohm. Pasternack PE3W09994 TNC male to N female cable assembly is constructed with RG6 coax.
