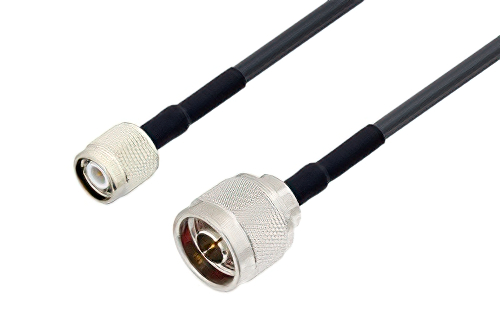

TNC Male to N Male Low Loss Cable Using LMR-240-DB Coax

製品ID: PE3C2662/HS

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	TNC
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	N
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	LMR-240-DB
RF Cable Type	LMR-240-DB
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE44634	LMR-240-DB	PE4344	KitBOM Datasheet

TNC Male to N Male Cable Using LMR-240-DB Coax

PE3C2662/HS is a TNC male to N male cable using LMR-240-DB coax. This Pasternack TNC male to N male cable assembly uses a 50 Ohm TNC for connector 1 and a 50 Ohm N for connector 2.

Our male TNC to male N cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C2662/HS TNC male to N male cable assembly is constructed with LMR-240-DB coax.

* LMR™ is a trademark of Times Microwave Systems.
