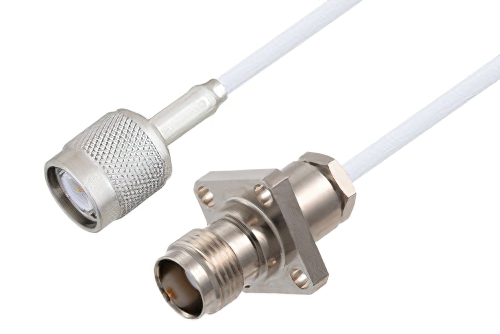

TNC Male to TNC Female 4 Hole Flange Cable Using RG188-DS Coax

製品ID: PE3W09931

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	TNC
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	TNC
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	4 Hole Flange
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG188-DS
RF Cable Type	RG188-DS
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE45161	RG188-DS	PE44901	KitBOM Datasheet

TNC Male to TNC Female 4 Hole Flange Cable Using RG188-DS Coax

PE3W09931 is a TNC male to TNC female 4 hole flange cable using RG188-DS coax. This Pasternack TNC male to TNC female 4 hole flange cable assembly uses a 50 Ohm TNC for connector 1 and a 50 Ohm TNC for connector 2.

Our male TNC to female TNC 4 hole flange cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W09931 TNC male to TNC female 4 hole flange cable assembly is constructed with RG188-DS coax.
