BNC オス〜 SHV プラグケーブル、RG58 同軸

製品ID: PE3W00148

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	BNC
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SHV
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG58C/U
RF Cable Type	RG58
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4023	RG58C/U	PE4316	KitBOM Datasheet

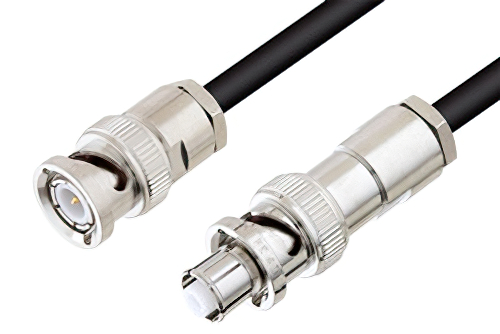

BNC Male to SHV Plug Cable Using RG58 Coax

PE3W00148 is a BNC male to SHV plug cable using RG58 coax. This Pasternack BNC male to SHV plug cable assembly uses a 50 Ohm BNC for connector 1 and a 50 Ohm SHV for connector 2.

Our male BNC to plug SHV cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W00148 BNC male to SHV plug cable assembly is constructed with RG58 coax.
