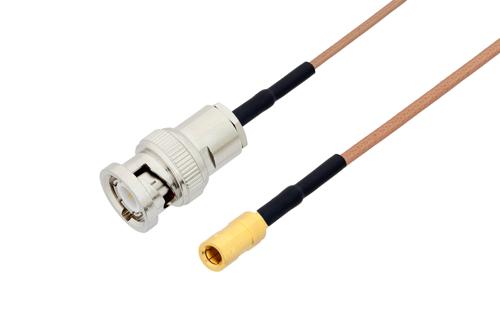

BNC オス〜 SSMB ジャックケーブル, RG178 同軸熱収縮チューブ付

製品ID: PE34877/HS

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	BNC
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SSMB
Connector Gender 2	Jack
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG178B/U
RF Cable Type	RG178
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4643	RG178B/U	PE4019	KitBOM Datasheet

BNC Male to SSMB Jack Cable Using RG178 Coax with HeatShrink

PE34877/HS is a BNC male to SSMB jack cable using RG178 coax. This Pasternack BNC male to SSMB jack cable assembly uses a 50 Ohm BNC for connector 1 and a 50 Ohm SSMB for connector 2.

Our male BNC to jack SSMB cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE34877/HS BNC male to SSMB jack cable assembly is constructed with RG178 coax.
