BNC メス コネクタ、クランプ/はんだ接続、RG213、RG214、RG8、RG9、RG11、RG225、RG393、RG144、RG216、RG215

製品ID: PE4212

数量別価格

数量単価
1-24¥11,799
25-49¥11,209
50-99¥10,619
100-249¥10,147
250+Call

消費税込単価
数量:
在庫数:1,881
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesBNC
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodClamp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency4 GHz
Interface Type 1RG213
Interface Type 2RG214
Interface Type 3RG8
Interface Type 4RG9
Interface Type 5RG11
Interface Type 6RG225
Interface Type 7RG393
Interface Type 8RG144
Interface Type 9RG216
Interface Type 10RG215

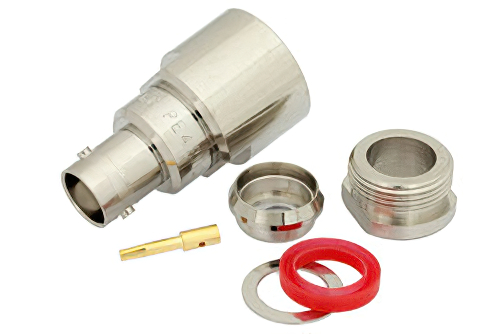

Description

BNC Female Connector Clamp/Solder Attachment for RG213, RG214, RG8, RG9, RG11, RG225, RG393, RG144, RG216, RG215

PE4212 BNC female coaxial connector has an interface type of RG213, RG214, RG8, RG9, RG11, RG225, RG393, RG144, RG216, RG215 and a 50 Ohm impedance. Pasternack BNC female connector uses shield/contact clamp/solder as an attachment method. Our female BNC coaxial connector provides a minimum frequency of DC and a maximum frequency of 4 GHz.

The Pasternack BNC female coaxial connector has a PTFE dielectric type. The Pasternack BNC coaxial connector has a brass body with nickel plating. Our PE4212 BNC connector uses brass contact. This BNC female coaxial RF connector is RoHS and REACH compliant.

This Pasternack female BNC connector will ship the same day as purchased. Our BNC female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom BNC connector cable assemblies that will ship the same day as well.
