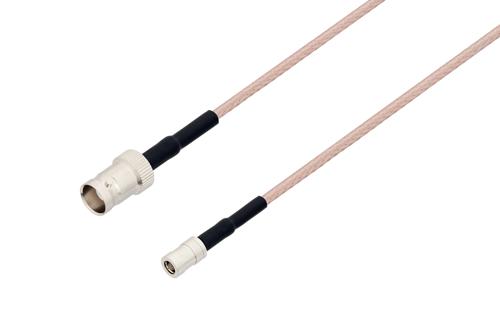

BNC メス〜 SMB プラグケーブル, RG316 同軸熱収縮チューブ付, 鉛フリーはんだ

製品ID: PE33495LF/HS

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	BNC
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SMB
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG316/U
RF Cable Type	RG316
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4079	RG316/U	PE4046	KitBOM Datasheet

BNC Female to SMB Plug Cable Using RG316 Coax with HeatShrink, LF Solder

PE33495LF/HS is a BNC female to SMB plug cable using RG316 coax. This Pasternack BNC female to SMB plug cable assembly uses a 50 Ohm BNC for connector 1 and a 50 Ohm SMB for connector 2.

Our female BNC to plug SMB cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE33495LF/HS BNC female to SMB plug cable assembly is constructed with RG316 coax.
