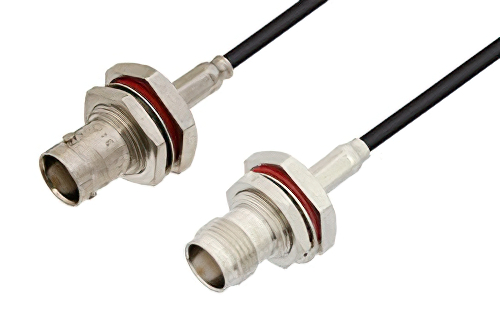

BNC Female Bulkhead to TNC Female Bulkhead Cable Using RG174 Coax

製品ID: PE3W09944

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	BNC
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	Bulkhead
Connector Impedance 1	50 Ohm
Connector Series 2	TNC
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG174A/U
RF Cable Type	RG174
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4106	RG174A/U	PE4466	KitBOM Datasheet

BNC Female Bulkhead to TNC Female Bulkhead Cable Using RG174 Coax

PE3W09944 is a BNC female bulkhead to TNC female bulkhead cable using RG174 coax. This Pasternack BNC female bulkhead to TNC female bulkhead cable assembly uses a 50 Ohm BNC for connector 1 and a 50 Ohm TNC for connector 2.

Our female BNC bulkhead to female TNC bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W09944 BNC female bulkhead to TNC female bulkhead cable assembly is constructed with RG174 coax.
