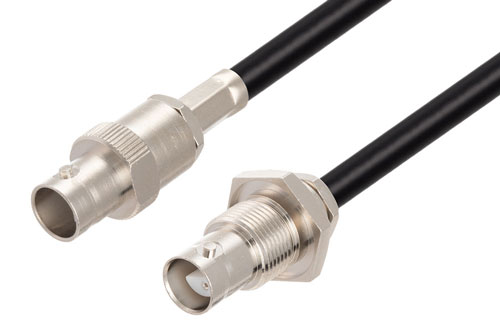

BNC Twinax Jack to BNC Twinax Jack Bulkhead Cable Using 78 Ohm RG108 Coax , LF Solder

製品ID: PE3W09940LF

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	BNC Twinax
Connector Gender 1	Jack
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	78 Ohm
Connector Series 2	BNC Twinax
Connector Gender 2	Jack
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	78 Ohm
RF Cable Part Number	RG108A/U
RF Cable Type	RG108
RF Cable Impedance	78 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4235	RG108A/U	PE44114	KitBOM Datasheet

BNC Twinax Jack to BNC Twinax Jack Bulkhead Cable Using 78 Ohm RG108 Coax, LF Solder

PE3W09940LF is a BNC Twinax jack to BNC Twinax jack bulkhead cable using RG108 coax. This Pasternack BNC Twinax jack to BNC Twinax jack bulkhead cable assembly uses a 78 Ohm BNC Twinax for connector 1 and a 78 Ohm BNC Twinax for connector 2.

Our jack BNC Twinax to jack BNC Twinax bulkhead cable assembly uses a flexible cable type that is 78 Ohm. Pasternack PE3W09940LF BNC Twinax jack to BNC Twinax jack bulkhead cable assembly is constructed with RG108 coax.
