75 Ω F オス コネクタ、圧着/圧着接続、RG59、RG62、RG71、3ピースコネクタ

製品ID: PE44317

数量別価格

数量単価
1-24¥1,768
25-49¥1,680
50-99¥1,591
100-249¥1,520
250+Call

消費税込単価
数量:
在庫数:1,741
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesF
Connector GenderMale
Impedance75 Ohm
Body StyleStraight
Attachment MethodCrimp/Crimp
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency2 GHz
Interface Type 1RG59
Interface Type 2RG62
Interface Type 3RG71

Description

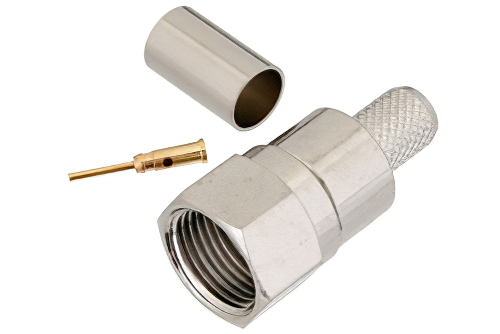

75 Ohm F Male Connector Crimp/Crimp Attachment for RG59, RG62, RG71, 3 Pieces Connector

PE44317 type F male coaxial connector has an interface type of RG59, RG62, RG71 and a 75 Ohm impedance. Pasternack type F male connector uses shield/contact crimp/crimp as an attachment method. Our male type F coaxial connector provides a minimum frequency of DC and a maximum frequency of 2 GHz.

The Pasternack type F male coaxial connector has a POM dielectric type. The Pasternack type F coaxial connector has a brass body with nickel plating. Our PE44317 type F connector uses brass contact. This F type male coaxial RF connector is RoHS and REACH compliant.

This Pasternack male F type connector will ship the same day as purchased. Our type F male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type F connector cable assemblies that will ship the same day as well.
