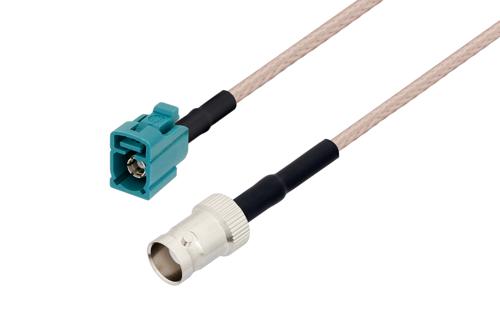

水色 FAKRA ジャック〜 BNC メスケーブル、RG316 同軸、熱収縮チューブ

製品ID: PE3C1708/HS

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	FAKRA
Connector Gender 1	Jack
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	BNC
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG316/U
RF Cable Type	RG316
RF Cable Impedance	50 Ohm

Description

Water Blue FAKRA Jack to BNC Female Cable Using RG316 Coax with HeatShrink

PE3C1708/HS is a FAKRA jack to BNC female cable using RG316 coax. This Pasternack FAKRA jack to BNC female cable assembly uses a 50 Ohm FAKRA for connector 1 and a 50 Ohm BNC for connector 2.

Our jack FAKRA to female BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C1708/HS FAKRA jack to BNC female cable assembly is constructed with RG316 coax and the maximum VSWR is 1.4:1.
