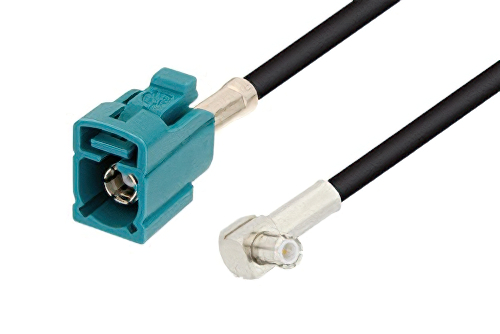

Water Blue FAKRA Jack to MCX Plug Right Angle Cable Using PE-C100-LSZH Coax

製品ID: PE3W09827

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	FAKRA
Connector Gender 1	Jack
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	MCX
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Right Angle
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	PE-C100-LSZH
RF Cable Type	PE-C100-LSZH
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE44646Z	PE-C100-LSZH	PE4553	KitBOM Datasheet

Water Blue FAKRA Jack to MCX Plug Right Angle Cable Using PE-C100-LSZH Coax

PE3W09827 is a FAKRA jack to MCX plug right angle cable using PE-C100-LSZH coax. This Pasternack FAKRA jack to MCX plug right angle cable assembly uses a 50 Ohm FAKRA for connector 1 and a 50 Ohm MCX for connector 2. FAKRA to MCX right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our jack FAKRA to plug MCX right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W09827 FAKRA jack to MCX plug right angle cable assembly is constructed with PE-C100-LSZH coax.
