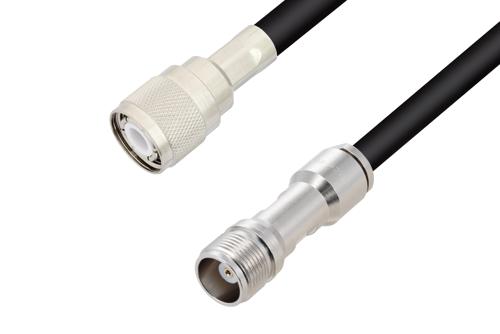

HN メス〜 HN オスケーブル、RG214 同軸、鉛フリーはんだ

製品ID: PE33305LF

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	HN
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	HN
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG214/U
RF Cable Type	RG214
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4229	RG214/U	PE4474	KitBOM Datasheet

HN Female to HN Male Cable Using RG214 Coax, LF Solder

PE33305LF is a HN female to HN male cable using RG214 coax. This Pasternack HN female to HN male cable assembly uses a 50 Ohm HN for connector 1 and a 50 Ohm HN for connector 2.

Our female HN to male HN cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE33305LF HN female to HN male cable assembly is constructed with RG214 coax.
