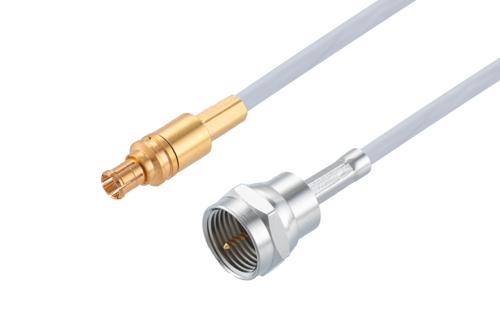

75 Ω MCX プラグ～ 75 Ω F オス, ケーブル 75 Ω RG187 同軸

製品ID: PE3W11731

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	MCX
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	75 Ohm
Connector Series 2	F
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	75 Ohm
RF Cable Part Number	RG187A/U
RF Cable Type	RG187
RF Cable Impedance	75 Ohm

Description

Click on the below images to access KitBOM product pages:


PE44298	RG187A/U	PE45520	KitBOM Datasheet

75 Ohm MCX Plug to 75 Ohm F Male Cable Using 75 Ohm RG187 Coax

PE3W11731 is a MCX plug to F male cable using RG187 coax. This Pasternack MCX plug to F male cable assembly uses a 75 Ohm MCX for connector 1 and a 75 Ohm F for connector 2.

Our plug MCX to male F cable assembly uses a flexible cable type that is 75 Ohm. Pasternack PE3W11731 MCX plug to F male cable assembly is constructed with RG187 coax.
