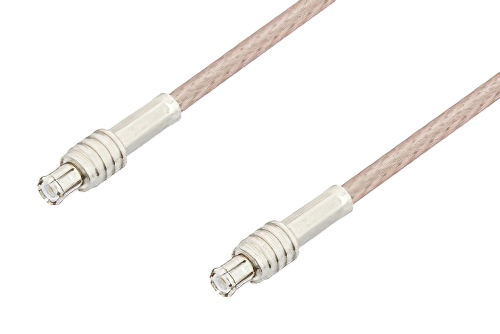

MCX プラグ〜 MCX プラグケーブル、RG316-DS 同軸、鉛フリーはんだ

Name: MCX プラグ 〜 MCX プラグ ケーブル、RG316-DS 同軸、鉛フリーはんだ
Brand: Pasternack
SKU: PE36799LF

製品ID: PE36799LF

長さ

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	MCX
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	MCX
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG316-DS
RF Cable Type	RG316-DS
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4878	RG316-DS	PE4878	KitBOM Datasheet

MCX Plug to MCX Plug Cable Using RG316-DS Coax, RoHS

PE36799LF is a MCX plug to MCX plug cable using RG316-DS coax. This Pasternack MCX plug to MCX plug cable assembly uses a 50 Ohm MCX for connector 1 and a 50 Ohm MCX for connector 2.

Our plug MCX to plug MCX cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE36799LF MCX plug to MCX plug cable assembly is constructed with RG316-DS coax.
