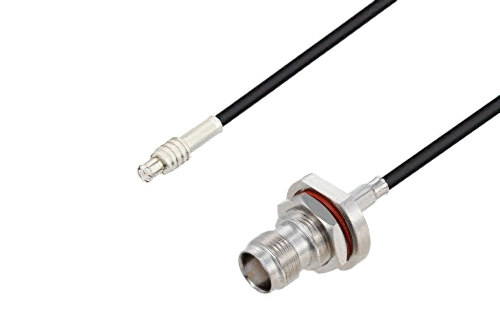

MCX プラグ〜 TNC メスバルクヘッドケーブル、RG174 同軸

製品ID: PE3W03310

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	MCX
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	TNC
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG174A/U
RF Cable Type	RG174
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4551	RG174A/U	PE44899	KitBOM Datasheet

MCX Plug to TNC Female Bulkhead Cable Using RG174 Coax

PE3W03310 is a MCX plug to TNC female bulkhead cable using RG174 coax. This Pasternack MCX plug to TNC female bulkhead cable assembly uses a 50 Ohm MCX for connector 1 and a 50 Ohm TNC for connector 2.

Our plug MCX to female TNC bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W03310 MCX plug to TNC female bulkhead cable assembly is constructed with RG174 coax.
