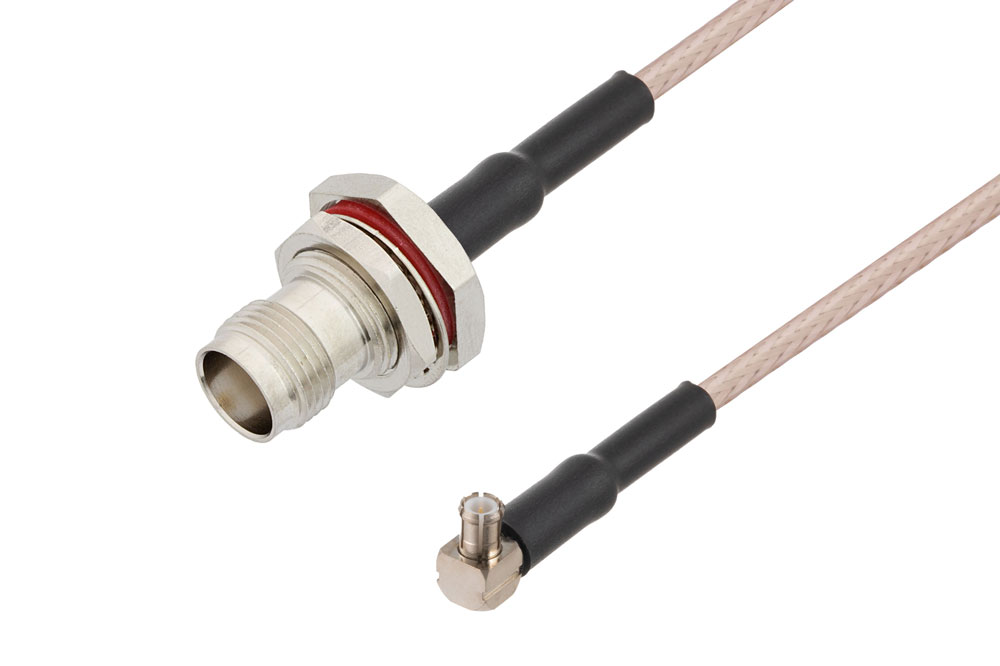

MCX プラグ直角〜 TNC メスバルクヘッドケーブル、RG316-DS 同軸、熱収縮チューブ付、鉛フリーはんだ

Name: MCX プラグ 直角 〜 TNC メス バルクヘッド ケーブル、RG316-DS 同軸 、熱収縮チューブ付、鉛フリーはんだ
Brand: Pasternack
SKU: PE35879LF/HS

製品ID: PE35879LF/HS

長さ

カスタム長

*長さは0.25インチまたはcm単位で指定できます

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	MCX
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Right Angle
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	TNC
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG316-DS
RF Cable Type	RG316-DS
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4879	RG316-DS	PE45177	KitBOM Datasheet

MCX Plug Right Angle to TNC Female Bulkhead Cable Using RG316-DS Coax with HeatShrink, LF Solder

PE35879LF/HS is a MCX plug right angle to TNC female bulkhead cable using RG316-DS coax. This Pasternack MCX plug right angle to TNC female bulkhead cable assembly uses a 50 Ohm MCX for connector 1 and a 50 Ohm TNC for connector 2. MCX right angle to TNC coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug MCX right angle to female TNC bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE35879LF/HS MCX plug right angle to TNC female bulkhead cable assembly is constructed with RG316-DS coax.
