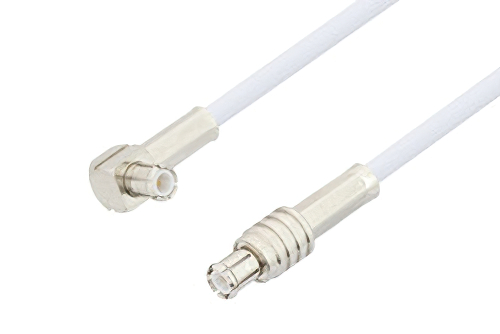

MCX Plug Right Angle to MCX Plug Cable Using RG188-DS Coax

製品ID: PE3W10029

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	MCX
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Right Angle
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	MCX
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG188-DS
RF Cable Type	RG188-DS
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4879	RG188-DS	PE4878	KitBOM Datasheet

MCX Plug Right Angle to MCX Plug Cable Using RG188-DS Coax

PE3W10029 is a MCX plug right angle to MCX plug cable using RG188-DS coax. This Pasternack MCX plug right angle to MCX plug cable assembly uses a 50 Ohm MCX for connector 1 and a 50 Ohm MCX for connector 2. MCX right angle to MCX coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug MCX right angle to plug MCX cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W10029 MCX plug right angle to MCX plug cable assembly is constructed with RG188-DS coax.
