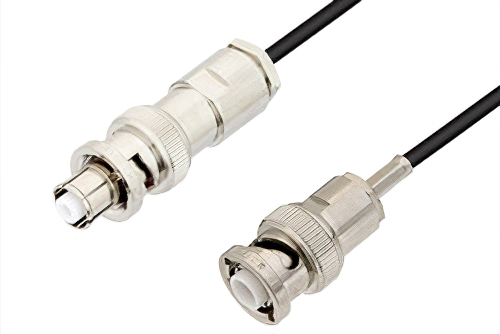

MHV オス〜 SHV プラグケーブル、RG174 同軸

製品ID: PE34419

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	MHV
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	SHV
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	RG174A/U
RF Cable Type	RG174
RF Cable Impedance	50

Description

MHV Male to SHV Plug Cable Using RG174 Coax

PE34419 is a MHV male to SHV plug cable using RG174 coax. This Pasternack MHV male to SHV plug cable assembly uses a 50 Ohm MHV for connector 1 and a 50 Ohm SHV for connector 2.

Our male MHV to plug SHV cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE34419 MHV male to SHV plug cable assembly is constructed with RG174 coax.
