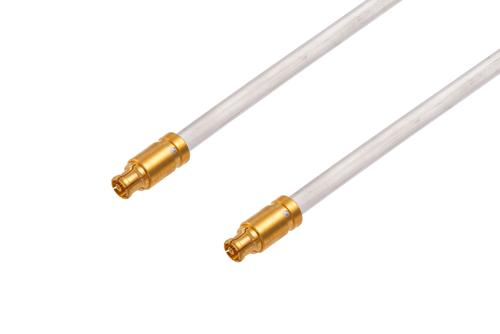

Mini SMP メス〜 Mini SMP メスケーブル、PE-SR405AL 同軸

製品ID: PE3W01970

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	Mini SMP
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	Mini SMP
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	PE-SR405AL
RF Cable Type	PE-SR405AL
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE44974	PE-SR405AL	PE44974	KitBOM Datasheet

Mini SMP Female to Mini SMP Female Cable Using PE-SR405AL Coax

PE3W01970 is a Mini SMP female to Mini SMP female cable using PE-SR405AL coax. This Pasternack Mini SMP female to Mini SMP female cable assembly uses a 50 Ohm Mini SMP for connector 1 and a 50 Ohm Mini SMP for connector 2.

Our female Mini SMP to female Mini SMP cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE3W01970 Mini SMP female to Mini SMP female cable assembly is constructed with PE-SR405AL coax.
