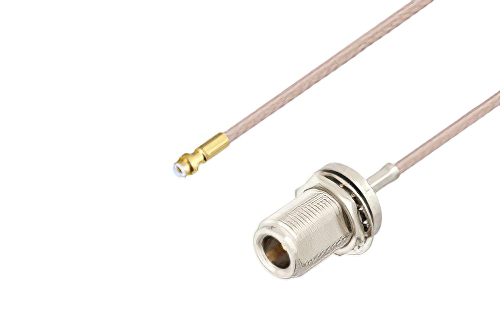

スナップオン MMBX プラグ〜 N メスバルクヘッドケーブル、RG316-DS 同軸

製品ID: PE3C4056

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	MMBX
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	N
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG316-DS
RF Cable Type	RG316-DS
RF Cable Impedance	50 Ohm

Description

Snap-On MMBX Plug to N Female Bulkhead Cable Using RG316-DS Coax

PE3C4056 is a MMBX plug to N type female bulkhead cable using RG316-DS coax. This Pasternack MMBX plug to type N female bulkhead cable assembly uses a 50 Ohm MMBX for connector 1 and a 50 Ohm type N for connector 2.

Our plug MMBX to female type N bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4056 MMBX plug to type N female bulkhead cable assembly is constructed with RG316-DS coax and the maximum VSWR is 1.4:1.
