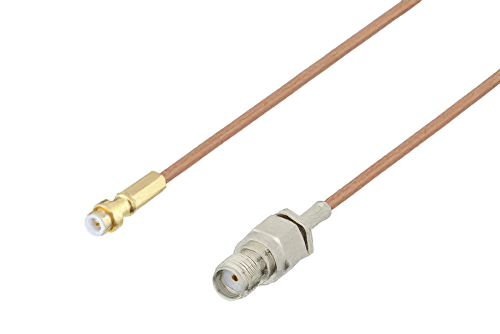

スナップオン MMBX プラグ〜 SMA メスケーブル、RG178 同軸

製品ID: PE3C3999

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	MMBX
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SMA
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG178B/U
RF Cable Type	RG178
RF Cable Impedance	50 Ohm

Description

Snap-On MMBX Plug to SMA Female Cable Using RG178 Coax

PE3C3999 is a MMBX plug to SMA female cable using RG178 coax. This Pasternack MMBX plug to SMA female cable assembly uses a 50 Ohm MMBX for connector 1 and a 50 Ohm SMA for connector 2.

Our plug MMBX to female SMA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C3999 MMBX plug to SMA female cable assembly is constructed with RG178 coax and the maximum VSWR is 1.4:1.
