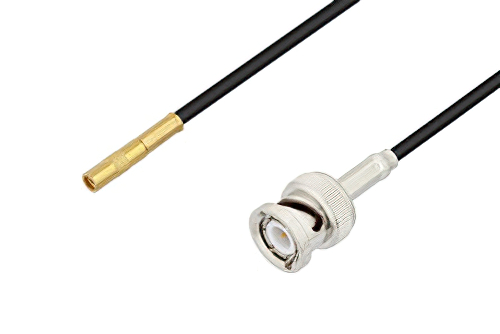

MMCX ジャック〜 BNC オスケーブル、PE-C100-LSZH 同軸

Name: MMCX ジャック 〜 BNC オス ケーブル、PE-C100-LSZH 同軸
Brand: Pasternack
SKU: PE3W01264

製品ID: PE3W01264

終息品

ケーブルアッセンブリより類似品をご覧いただくか、お問い合わせください.

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	MMCX
Connector Gender 1	Jack
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	BNC
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	PE-C100-LSZH
RF Cable Type	PE-C100-LSZH
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4901	PE-C100-LSZH	PE4043	KitBOM Datasheet

MMCX Jack to BNC Male Cable Using PE-C100-LSZH Coax

PE3W01264 is a MMCX jack to BNC male cable using PE-C100-LSZH coax. This Pasternack MMCX jack to BNC male cable assembly uses a 50 Ohm MMCX for connector 1 and a 50 Ohm BNC for connector 2.

Our jack MMCX to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W01264 MMCX jack to BNC male cable assembly is constructed with PE-C100-LSZH coax.
