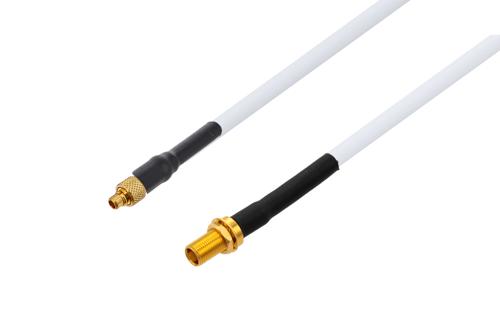

MMCX プラグ～ MCX ジャックバルクヘッドケーブル, RG188 同軸, 熱収縮チューブ付

製品ID: PE3W18778/HS

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	MMCX
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	MCX
Connector Gender 2	Jack
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG188A/U
RF Cable Type	RG188
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4896	RG188A/U	PE4887	KitBOM Datasheet

MMCX Plug to MCX Jack Bulkhead Cable Using RG188 Coax with HeatShrink

PE3W18778/HS is a MMCX plug to MCX jack bulkhead cable using RG188 coax. This Pasternack MMCX plug to MCX jack bulkhead cable assembly uses a 50 Ohm MMCX for connector 1 and a 50 Ohm MCX for connector 2.

Our plug MMCX to jack MCX bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W18778/HS MMCX plug to MCX jack bulkhead cable assembly is constructed with RG188 coax.
