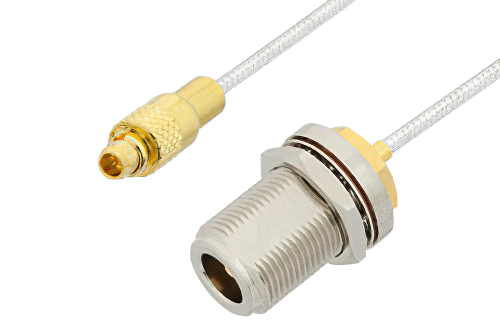

MMCX プラグ〜 N メスバルクヘッドケーブル、PE-SR047FL 同軸

製品ID: PE3W07591

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	MMCX
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	N
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	50 Ohm
RF Cable Part Number	PE-SR047FL
RF Cable Type	PE-SR047FL
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE44456	PE-SR047FL	PE4946	KitBOM Datasheet

MMCX Plug to N Female Bulkhead Cable Using PE-SR047FL Coax

PE3W07591 is a MMCX plug to N female bulkhead cable using PE-SR047FL coax. This Pasternack MMCX plug to N female bulkhead cable assembly uses a 50 Ohm MMCX for connector 1 and a 50 Ohm N for connector 2.

Our plug MMCX to female N bulkhead cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE3W07591 MMCX plug to N female bulkhead cable assembly is constructed with PE-SR047FL coax.
