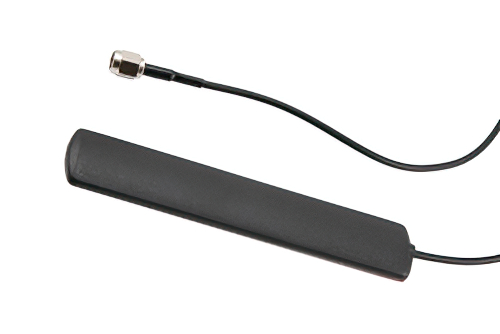

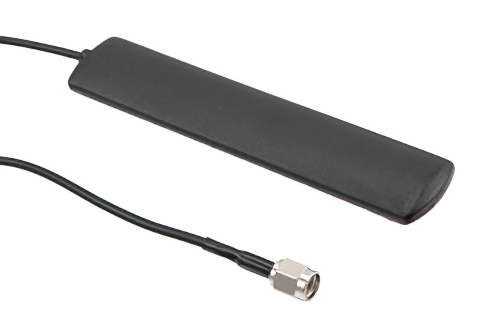

2 dBi MultiBand Blade Mobile Antenna 824-25,000 MHz SMA Connector

製品ID: PE51GM1002

数量別価格

数量単価
1-24¥4,838
25-49¥4,596
50-99¥4,354
100-249¥4,161
250+Call

消費税込単価
数量:
お問い合わせください
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Antenna TypeMobile
PolarizationVertical
Minimum Frequency824 MHz
Maximum Frequency2.5 GHz
Connector 1 PolarityReverse Polarity
Connector SeriesSMA
Connector GenderPlug
Impedance50 Ohm
Maximum Input VSWR2:1

Description

2 dBi MultiBand Blade Mobile Antenna 824-2,500 MHz RP-SMA Connector

Mobile antenna PE51GM1002 from Pasternack is part of our extensive in-stock omni-directional radio antenna selection. This multi band mobile antenna has a frequency range of 824 MHz to 960 MHz, 1.71 GHz to 2.2 GHz, 2.4 GHz to 2.5 GHz and a nominal dBi gain. Our mobile antenna uses SMA input and is rated for 10 Watts input.

PE51GM1002 mobile radio antenna is one of over 40,000 RF, microwave and millimeter wave components supplied from Pasternack. Our mobile aerial can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
