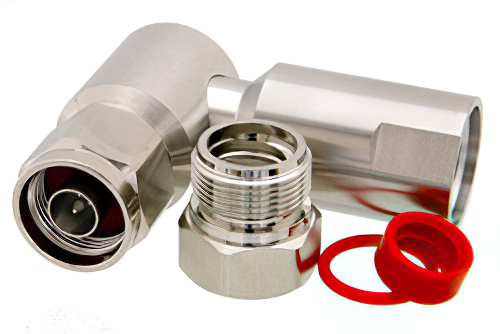

N オス 直角低PIMコネクタ、クランプ/ノンソルダー端子接続、1/2インチらせん状、1/2インチ超フレキ、1/2インチらせん状、PE-1/2SFHC、IP67準拠

製品ID: PE44554

数量別価格

数量単価
1-24¥11,362
25-49¥10,794
50-99¥10,226
100-249¥9,771
250+Call

消費税込単価
数量:
在庫数:456
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesN
Connector GenderMale
Impedance50 Ohm
Body StyleRight Angle
Attachment MethodClamp/Non-Solder Contact
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency3 GHz
Interface Type 11/2 inch Helical
Interface Type 21/2 inch Superflexible
Interface Type 3PE-1/2 Helical
Interface Type 4PE-1/2SFHC

Description

N Male Right Angle Connector Clamp/Non-Solder Contact Attachment for 1/2 inch Helical

PE44554 type N male right angle coaxial connector has an interface type of 1/2 inch Helical, 1/2 inch Superflexible, PE-1/2 Helical, PE-1/2SFHC and a 50 Ohm impedance. Pasternack type N male connector uses shield/contact clamp/non-solder contact as an attachment method. Our male N type right angle coaxial connector provides a minimum frequency of DC and a maximum frequency of 3 GHz.

The Pasternack right angle type N male coaxial connector has a PTFE dielectric type and a VSWR of 1.1. The Pasternack type N coaxial connector has a brass body with tri-metal plating. Our PE44554 type Nright angle connector uses brass contact. This type N male right angle coaxial RF connector is RoHS and REACH compliant.

This Pasternack right angle male type N connector will ship the same day as purchased. Our N type right angle male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type N connector cable assemblies that will ship the same day as well.
