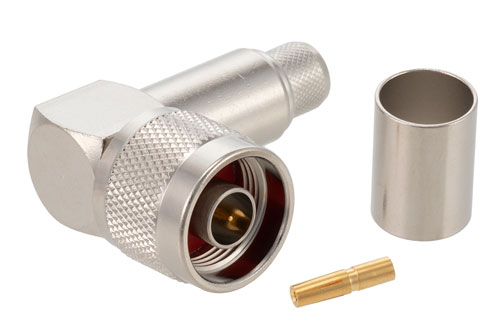

N オス 直角コネクタ、圧着/はんだ接続、RG214、RG9、RG225、RG393

製品ID: PE4483

数量別価格

数量単価
1-24¥15,296
25-49¥14,531
50-99¥13,766
100-249¥13,155
250+Call

消費税込単価
数量:
在庫数:353
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesN
Connector GenderMale
Impedance50 Ohm
Body StyleRight Angle
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency11 GHz
Interface Type 1RG214
Interface Type 2RG9
Interface Type 3RG225
Interface Type 4RG393

Description

N Male Right Angle Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393

PE4483 type N male right angle coaxial connector has an interface type of RG214, RG9, RG225, RG393 and a 50 Ohm impedance. Pasternack type N male connector uses shield/contact crimp/solder as an attachment method. Our male type N right angle coaxial connector provides a minimum frequency of DC and a maximum frequency of 11 GHz.

The Pasternack right angle N type male coaxial connector has a PTFE dielectric type. The Pasternack N type coaxial connector has a brass body with nickel plating. Our PE4483 N typeright angle connector uses brass contact. This type N male right angle coaxial RF connector is RoHS and REACH compliant.

This Pasternack right angle male N type connector will ship the same day as purchased. Our type N right angle male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type N connector cable assemblies that will ship the same day as well.
