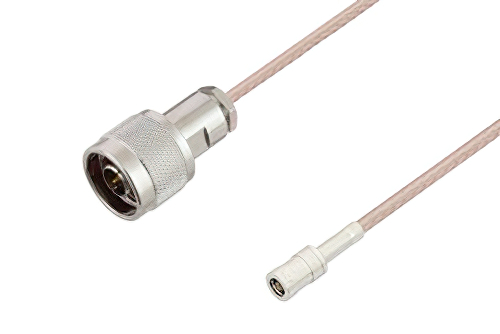

N オス〜 SMB プラグケーブル、RG316 同軸、鉛フリーはんだ

Name: N オス 〜 SMB プラグ ケーブル、RG316 同軸、鉛フリーはんだ
Brand: Pasternack
SKU: PE3W01293LF

製品ID: PE3W01293LF

長さ

カスタム長

*長さは0.25インチまたはcm単位で指定できます

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	N
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SMB
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG316/U
RF Cable Type	RG316
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4224	RG316/U	PE4046	KitBOM Datasheet

N Male to SMB Plug Cable Using RG316 Coax , RoHS

PE3W01293LF is a N male to SMB plug cable using RG316 coax. This Pasternack N male to SMB plug cable assembly uses a 50 Ohm N for connector 1 and a 50 Ohm SMB for connector 2.

Our male N to plug SMB cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W01293LF N male to SMB plug cable assembly is constructed with RG316 coax.
