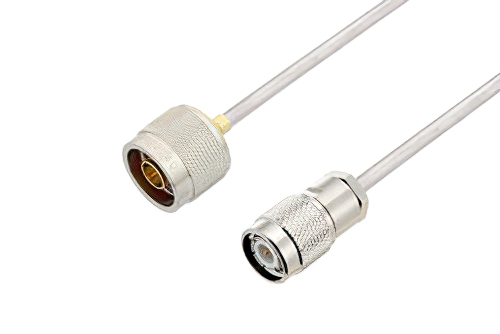

N オス〜 TNC オスケーブル、PE-SR402AL 同軸

製品ID: PE3W05401

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	N
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	TNC
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	PE-SR402AL
RF Cable Type	PE-SR402AL
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4140	PE-SR402AL	PE4143	KitBOM Datasheet

N Male to TNC Male Cable Using PE-SR402AL Coax

PE3W05401 is a N male to TNC male cable using PE-SR402AL coax. This Pasternack N male to TNC male cable assembly uses a 50 Ohm N for connector 1 and a 50 Ohm TNC for connector 2.

Our male N to male TNC cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE3W05401 N male to TNC male cable assembly is constructed with PE-SR402AL coax.
