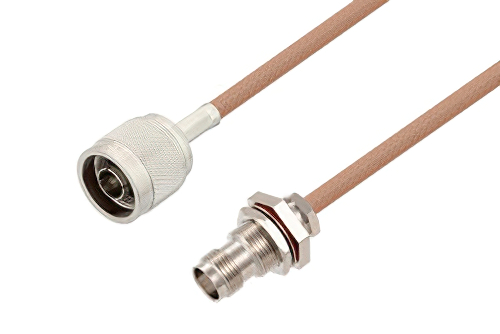

N オス〜 TNC メスバルクヘッドケーブル、RG400 同軸

製品ID: PE3W07264

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	N
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	TNC
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG400/U
RF Cable Type	RG400
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4042	RG400/U	PE4152	KitBOM Datasheet

N Male to TNC Female Bulkhead Cable Using RG400 Coax

PE3W07264 is a N male to TNC female bulkhead cable using RG400 coax. This Pasternack N male to TNC female bulkhead cable assembly uses a 50 Ohm N for connector 1 and a 50 Ohm TNC for connector 2.

Our male N to female TNC bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W07264 N male to TNC female bulkhead cable assembly is constructed with RG400 coax.
