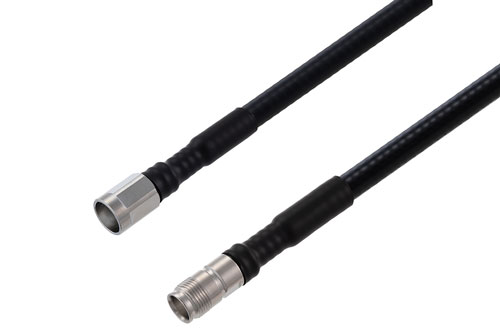

NEX10 オス～ NEX10 メス低 PIM ケーブル, SPF-250 同軸

製品ID: PE3W17856

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	NEX10
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	NEX10
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	SPF-250
RF Cable Type	SPF-250
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE45668	SPF-250	PE45670	KitBOM Datasheet

NEX10 Male to NEX10 Female Cable Using SPF-250 Coax

PE3W17856 is a NEX10 male to NEX10 female cable using SPF-250 coax. This Pasternack NEX10 male to NEX10 female cable assembly uses a 50 Ohm NEX10 for connector 1 and a 50 Ohm NEX10 for connector 2.

Our male NEX10 to female NEX10 cable assembly uses a corrugated cable type that is 50 Ohm. Pasternack PE3W17856 NEX10 male to NEX10 female cable assembly is constructed with SPF-250 coax.
