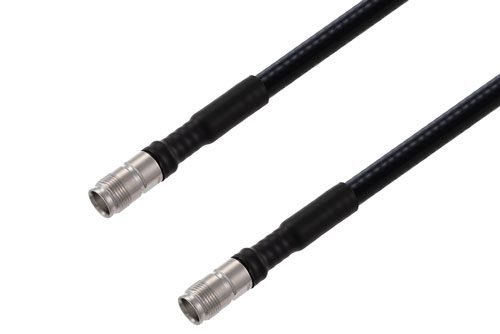

NEX10 メス～ NEX10 メス低 PIM ケーブル, SPO-250 同軸

製品ID: PE3W16168

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	NEX10
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	NEX10
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	SPO-250
RF Cable Type	SPO-250
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE45670	SPO-250	PE45670	KitBOM Datasheet

NEX10 Female to NEX10 Female Cable Using SPO-250 Coax

PE3W16168 is a NEX10 female to NEX10 female cable using SPO-250 coax. This Pasternack NEX10 female to NEX10 female cable assembly uses a 50 Ohm NEX10 for connector 1 and a 50 Ohm NEX10 for connector 2.

Our female NEX10 to female NEX10 cable assembly uses a corrugated cable type that is 50 Ohm. Pasternack PE3W16168 NEX10 female to NEX10 female cable assembly is constructed with SPO-250 coax.
