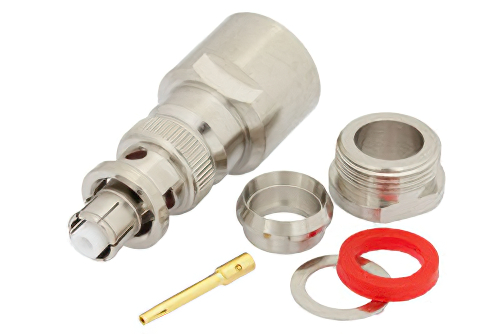

SHV プラグ コネクタ、クランプ/はんだ接続、RG8、RG213、RG214

製品ID: PE4333

数量別価格

数量単価
1-24¥12,455
25-49¥11,832
50-99¥11,210
100-249¥10,711
250+Call

消費税込単価
数量:
在庫数:700
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard

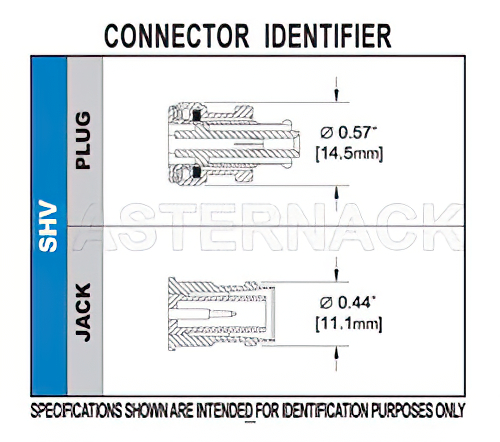

Connector SeriesSHV
Connector GenderPlug
Impedance50 Ohm
Body StyleStraight
Attachment MethodClamp/Solder
Mount MethodNone
Interface Type 1RG8
Interface Type 2RG213
Interface Type 3RG214

Description

SHV Plug Connector Clamp/Solder Attachment for RG8, RG213, RG214

PE4333 SHV plug coaxial connector has an interface type of RG8, RG213, RG214 and a 50 Ohm impedance. Pasternack SHV plug connector uses shield/contact clamp/solder as an attachment method.

The Pasternack SHV plug coaxial connector has a PTFE dielectric type. The Pasternack SHV coaxial connector has a brass body with nickel plating. Our PE4333 SHV connector uses brass contact. This SHV plug coaxial RF connector is RoHS and REACH compliant.

This Pasternack plug SHV connector will ship the same day as purchased. Our SHV plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SHV connector cable assemblies that will ship the same day as well.
