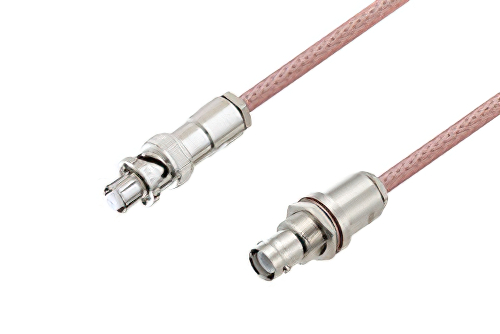

SHV プラグ〜 SHV ジャックバルクヘッドケーブル、RG142 同軸

製品ID: PE3W03078

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SHV
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SHV
Connector Gender 2	Jack
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG142B/U
RF Cable Type	RG142
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4316	RG142B/U	PE44080	KitBOM Datasheet

SHV Plug to SHV Jack Bulkhead Cable Using RG142 Coax

PE3W03078 is a SHV plug to SHV jack bulkhead cable using RG142 coax. This Pasternack SHV plug to SHV jack bulkhead cable assembly uses a 50 Ohm SHV for connector 1 and a 50 Ohm SHV for connector 2.

Our plug SHV to jack SHV bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W03078 SHV plug to SHV jack bulkhead cable assembly is constructed with RG142 coax.
