SHV プラグ〜 SHV プラグケーブル、RG214 同軸、熱収縮チューブ

製品ID: PE3117/HS

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SHV
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SHV
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG214/U
RF Cable Type	RG214
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4349	RG214/U	PE4349	KitBOM Datasheet

SHV Plug to SHV Plug Cable Using RG214 Coax with HeatShrink

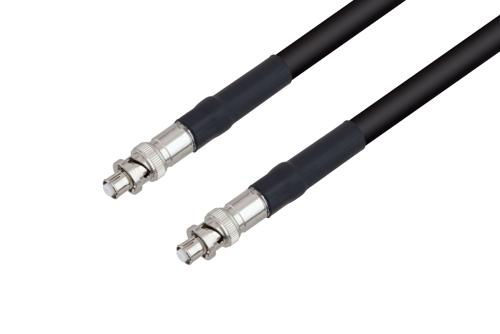

PE3117/HS is a SHV plug to SHV plug cable using RG214 coax. This Pasternack SHV plug to SHV plug cable assembly uses a 50 Ohm SHV for connector 1 and a 50 Ohm SHV for connector 2.

Our plug SHV to plug SHV cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3117/HS SHV plug to SHV plug cable assembly is constructed with RG214 coax.
