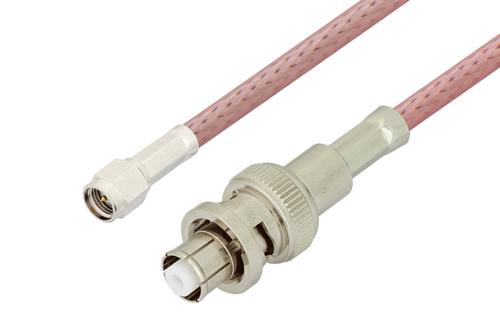

SHV プラグ〜 SMA オスケーブル, RG303 同軸, 鉛フリーはんだ

製品ID: PE3C1656LF

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SHV
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SMA
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG303/U
RF Cable Type	RG303
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4194	RG303/U	PE4215	KitBOM Datasheet

SHV Plug to SMA Male Cable Using RG303 Coax, LF Solder

PE3C1656LF is a SHV plug to SMA male cable using RG303 coax. This Pasternack SHV plug to SMA male cable assembly uses a 50 Ohm SHV for connector 1 and a 50 Ohm SMA for connector 2.

Our plug SHV to male SMA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C1656LF SHV plug to SMA male cable assembly is constructed with RG303 coax.
