SHV Jack Bulkhead to SHV Plug Cable Using RG214 Coax with HeatShrink

製品ID: PE36503/HS

長さ

*長さは0.25インチまたはcm単位で指定できます
*長さは0.25インチまたはcm単位で指定できます

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SHV
Connector Gender 1Jack
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1Bulkhead
Connector Impedance 150 Ohm
Connector Series 2SHV
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG214/U
RF Cable TypeRG214
RF Cable Impedance50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE44049RG214/UPE4349KitBOM Datasheet

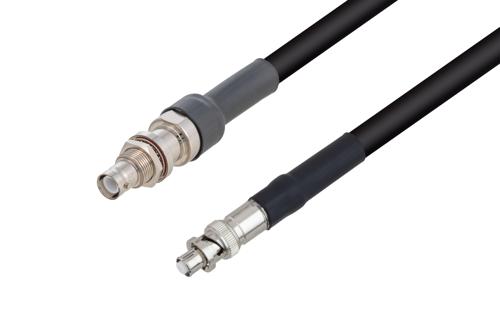

SHV Jack Bulkhead to SHV Plug Cable Using RG214 Coax with HeatShrink

PE36503/HS is a SHV jack bulkhead to SHV plug cable using RG214 coax. This Pasternack SHV jack bulkhead to SHV plug cable assembly uses a 50 Ohm SHV for connector 1 and a 50 Ohm SHV for connector 2.

Our jack SHV bulkhead to plug SHV cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE36503/HS SHV jack bulkhead to SHV plug cable assembly is constructed with RG214 coax.
