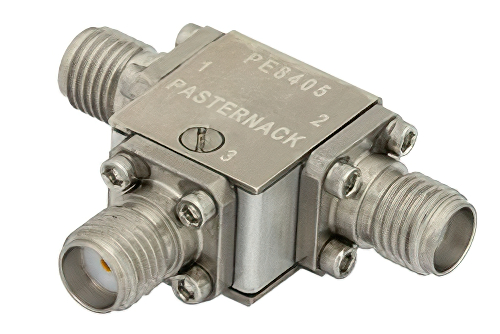

SMAジャック フェライト・サーキュレータ; 11 - 18 GHz

製品ID: PE8405

数量別価格

数量単価
1-9¥100,087
10-24¥95,083
25-49¥90,078
50+Call

消費税込単価
数量:
在庫数:7
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector In SeriesSMA
Connector In GenderFemale
Connector Out SeriesSMA
Minimum Frequency11 GHz
Maximum Frequency18 GHz
Impedance50 Ohm
Maximum Insertion Loss0.5 dB
Maximum Input Power10 Watts
Minimum Isolation20 dB

Description

Circulator With 20 dB Isolation From 11 GHz to 18 GHz, 10 Watts And SMA Female

RF circulator PE8405 from Pasternack is part of our extensive in-stock RF, microwave and millimeter wave components available for purchase. This RF circulator is manufactured with SMA connectors that are female. Our SMA circulator has a minimum frequency of 11 GHz and a maximum frequency of 18 GHz.

This SMA coaxial circulator has a minimum isolation of 20 dB and a maximum input power of 10 Watts. PE8405 coaxial SMA circulator is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our radio frequency circulator can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
