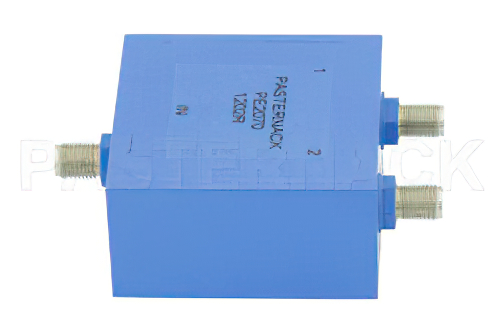

50 Ω、SMA 電力2分配器、2 MHz 〜 500 MHz、定格 1 W

製品ID: PE2070

数量別価格

数量単価
1-9¥158,437
10-24¥150,515
25-49¥142,593
50+Call

消費税込単価
数量:
在庫数:21
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series InSMA
Connector Gender InFemale
Minimum Frequency2 MHz
Maximum Frequency500 MHz
Number of Output Ports2 Port
Impedance50 Ohm
Maximum Input Power1 Watt

Description

2 Way SMA Power Divider From 2 MHz to 500 MHz Rated at 1 Watt

PE2070 2 way SMA power divider (also known as a SMA coaxial power splitter) is rated for a minimum frequency of 2 MHz and a maximum frequency of 500 MHz. This Pasternack 2 port SMA power divider / coaxial splitter has a 50 Ohm impedance and a maxium input power of 1 Watts. Our SMA coaxial RF splitter / divider has a female SMA input and 2 female SMA output ports.

This 2 way SMA RF power divider from Pasternack is a reactive design and has a maximum insertion loss of 0. The maximum input VSWR of this SMA reactive splitter / divider is 1.35:1 and the minimum isolation is 25 dB. Our 2 port SMA power divider is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. This reactive 2 way SMA female coaxial RF power divider splitter can be bought and shipped worldwide the same-day as with Pasternack's other in-stock RF parts.
