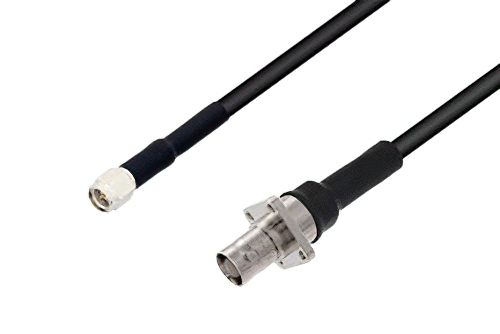

SMA オス〜 BNC メス 4 穴フランジ低損失ケーブル、PE-C195 同軸

製品ID: PE39324/HS

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	BNC
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	4 Hole Flange
Connector Impedance 2	50 Ohm
RF Cable Part Number	PE-C195
RF Cable Type	PE-C195
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4215	PE-C195	PE4056	KitBOM Datasheet

SMA Male to BNC Female 4 Hole Flange Cable Using PE-C195 Coax with HeatShrink

PE39324/HS is a SMA male to BNC female 4 hole flange cable using PE-C195 coax. This Pasternack SMA male to BNC female 4 hole flange cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm BNC for connector 2.

Our male SMA to female BNC 4 hole flange cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE39324/HS SMA male to BNC female 4 hole flange cable assembly is constructed with PE-C195 coax.
