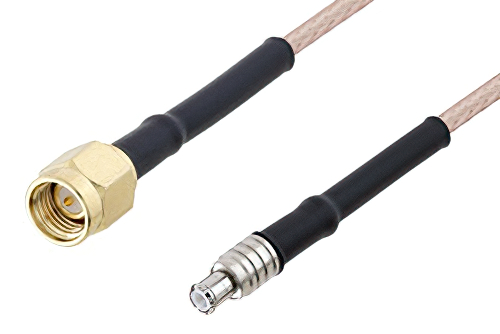

SMA オス〜 MCX プラグケーブル、RG316 同軸、熱収縮チューブ、鉛フリーはんだ

製品ID: PE3W02270LF/HS

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	MCX
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG316/U
RF Cable Type	RG316
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE45145	RG316/U	PE4551	KitBOM Datasheet

SMA Male to MCX Plug Cable Using RG316 Coax with HeatShrink, RoHS

PE3W02270LF/HS is a SMA male to MCX plug cable using RG316 coax. This Pasternack SMA male to MCX plug cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm MCX for connector 2.

Our male SMA to plug MCX cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W02270LF/HS SMA male to MCX plug cable assembly is constructed with RG316 coax.
