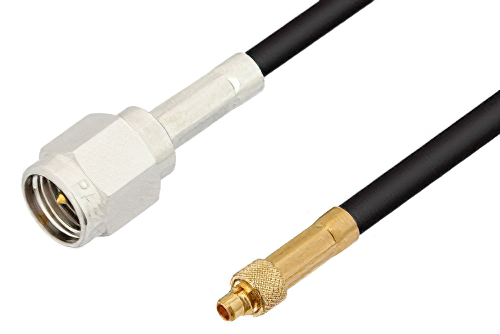

SMA オス〜 MMCX プラグケーブル、RG174 同軸、鉛フリーはんだ

製品ID: PE34069LF

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	MMCX
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	RG174A/U
RF Cable Type	RG174
RF Cable Impedance	50

Description

SMA Male to MMCX Plug Cable Using RG174 Coax, RoHS

PE34069LF is a SMA male to MMCX plug cable using RG174 coax. This Pasternack SMA male to MMCX plug cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm MMCX for connector 2.

Our male SMA to plug MMCX cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE34069LF SMA male to MMCX plug cable assembly is constructed with RG174 coax and the maximum VSWR is 1.4:1.
