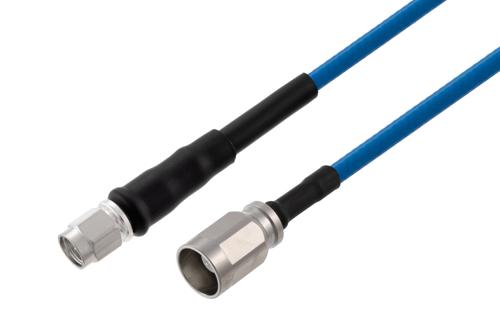

SMA オス〜 NEX10 オス低 PIM ケーブル, TFT-5G-402 同軸

製品ID: PE3W15839

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	NEX10
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	TFT-5G-402
RF Cable Type	TFT-5G-402
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


TC-402-SM-LP	TFT-5G-402	TC-402-NX10M-LP	KitBOM Datasheet

SMA Male to NEX10 Male Cable Using TFT-5G-402 Coax

PE3W15839 is a SMA male to NEX10 male cable using TFT-5G-402 coax. This Pasternack SMA male to NEX10 male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm NEX10 for connector 2.

Our male SMA to male NEX10 cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W15839 SMA male to NEX10 male cable assembly is constructed with TFT-5G-402 coax.
