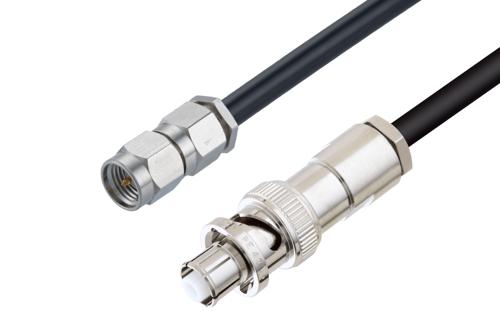

SMA オス〜 SHV プラグケーブル、RG223 同軸

製品ID: PE3W09191

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SHV
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG223/U
RF Cable Type	RG223
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4027	RG223/U	PE4316	KitBOM Datasheet

SMA Male to SHV Plug Cable Using RG223 Coax

PE3W09191 is a SMA male to SHV plug cable using RG223 coax. This Pasternack SMA male to SHV plug cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SHV for connector 2.

Our male SMA to plug SHV cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W09191 SMA male to SHV plug cable assembly is constructed with RG223 coax.
