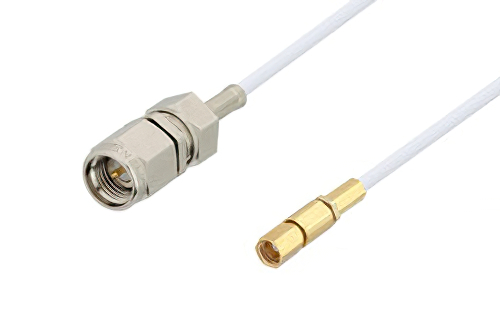

SMA オス〜 SSMC プラグケーブル、RG196 同軸

製品ID: PE3W06410

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SSMC
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG196A/U
RF Cable Type	RG196
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4398	RG196A/U	PE45367	KitBOM Datasheet

SMA Male to SSMC Plug Cable Using RG196 Coax

PE3W06410 is a SMA male to SSMC plug cable using RG196 coax. This Pasternack SMA male to SSMC plug cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SSMC for connector 2.

Our male SMA to plug SSMC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W06410 SMA male to SSMC plug cable assembly is constructed with RG196 coax.
