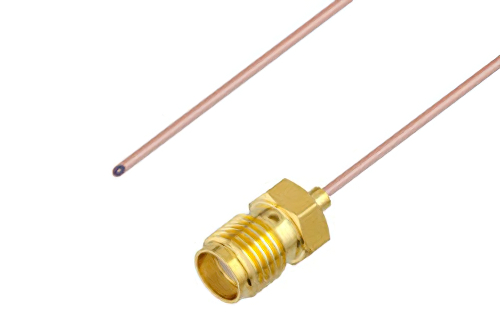

SMA メス〜切り離し同軸線、加工無し雌雄同形ケーブル、PE-034SR 同軸

製品ID: PE3CA1102

長さ

標準長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	Straight Cut Lead
Connector Gender 2	Sexless
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	PE-034SR
RF Cable Type	PE-034SR
RF Cable Impedance	50

Description

Pigtail Test Probe Cable SMA Female to Flush Cut Lead Using PE-034SR Coax, RoHS

PE3CA1102 is a SMA female to Straight Cut Lead sexless cable using PE-034SR coax. This Pasternack SMA female to Straight Cut Lead sexless cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm Straight Cut Lead for connector 2.

Our female SMA to sexless Straight Cut Lead cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE3CA1102 SMA female to Straight Cut Lead sexless cable assembly is constructed with PE-034SR coax and the maximum VSWR is 1.35:1.
