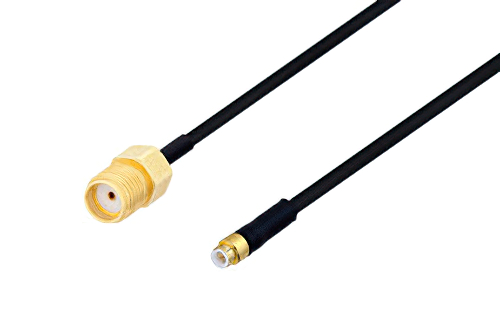

SMA メス〜スナップオン MMBX プラグケーブル、PE-SR405FLJ 同軸

製品ID: PE3C5568/HS

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	MMBX
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	PE-SR405FLJ
RF Cable Type	PE-SR405FLJ
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4116	PE-SR405FLJ	PE45253	KitBOM Datasheet

SMA Female to Snap-On MMBX Plug Cable Using PE-SR405FLJ Coax with HeatShrink

PE3C5568/HS is a SMA female to MMBX plug cable using PE-SR405FLJ coax. This Pasternack SMA female to MMBX plug cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm MMBX for connector 2.

Our female SMA to plug MMBX cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE3C5568/HS SMA female to MMBX plug cable assembly is constructed with PE-SR405FLJ coax.
