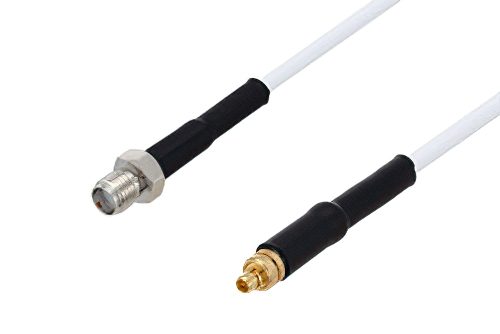

SMA メス〜 MMCX プラグケーブル、RG188-DS 同軸

製品ID: PE3W03032

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	MMCX
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG188-DS
RF Cable Type	RG188-DS
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4417	RG188-DS	PE44874	KitBOM Datasheet

SMA Female to MMCX Plug Cable Using RG188-DS Coax

PE3W03032 is a SMA female to MMCX plug cable using RG188-DS coax. This Pasternack SMA female to MMCX plug cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm MMCX for connector 2.

Our female SMA to plug MMCX cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W03032 SMA female to MMCX plug cable assembly is constructed with RG188-DS coax.
