SMA メスバルクヘッド〜 MMCX プラグケーブル、RG316 同軸

製品ID: PE35575

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	Bulkhead
Connector Impedance 1	50
Connector Series 2	MMCX
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	RG316/U
RF Cable Type	RG316
RF Cable Impedance	50

Description

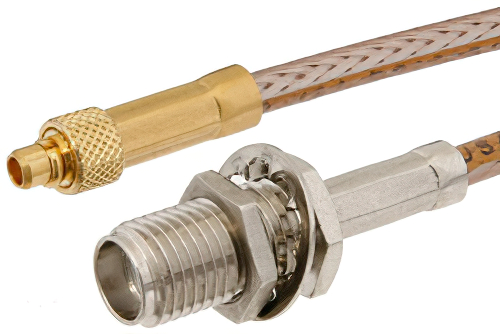

SMA Female Bulkhead to MMCX Plug Cable Using RG316 Coax

PE35575 is a SMA female bulkhead to MMCX plug cable using RG316 coax. This Pasternack SMA female bulkhead to MMCX plug cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm MMCX for connector 2.

Our female SMA bulkhead to plug MMCX cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE35575 SMA female bulkhead to MMCX plug cable assembly is constructed with RG316 coax.
